Information

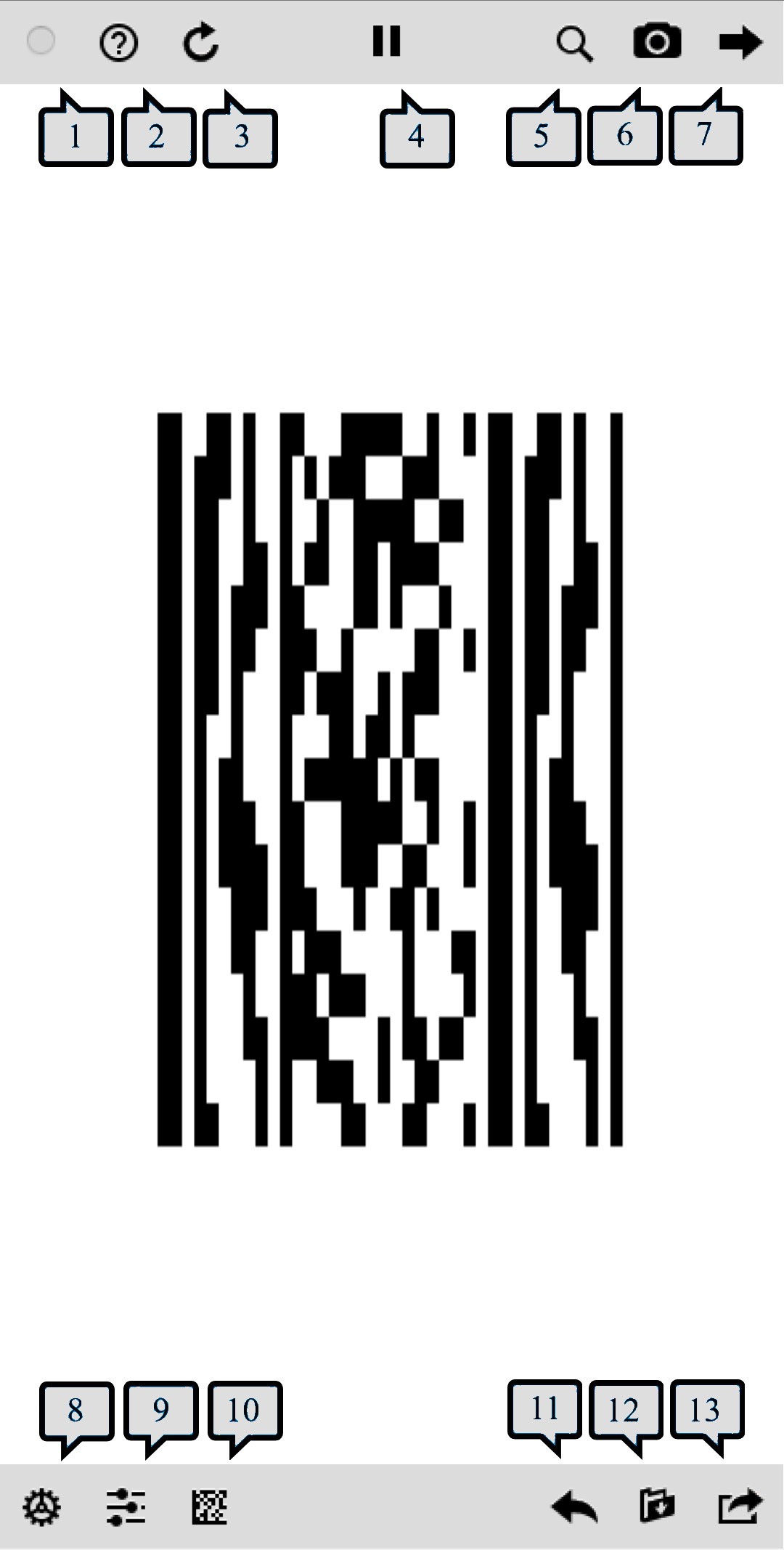

Home page.

1. Program progress indicator.
2. Help with functions.
3. Inversion (in addition to point-by-point scanning, it is inverted (white to black) and checked for the presence of a barcode).
4. Backlight.
5. Scan the current image.
6. Recognition using a camera.
7. Go to the result page.
8. Application settings.
9. Camera settings.
10. Selecting barcodes and setting up additional parameters.
11. Send the current image to a file, email, Viber, Skype, etc. (not used on Apple and Windows).
12. Save the current image.
13. Select an image from the general images.

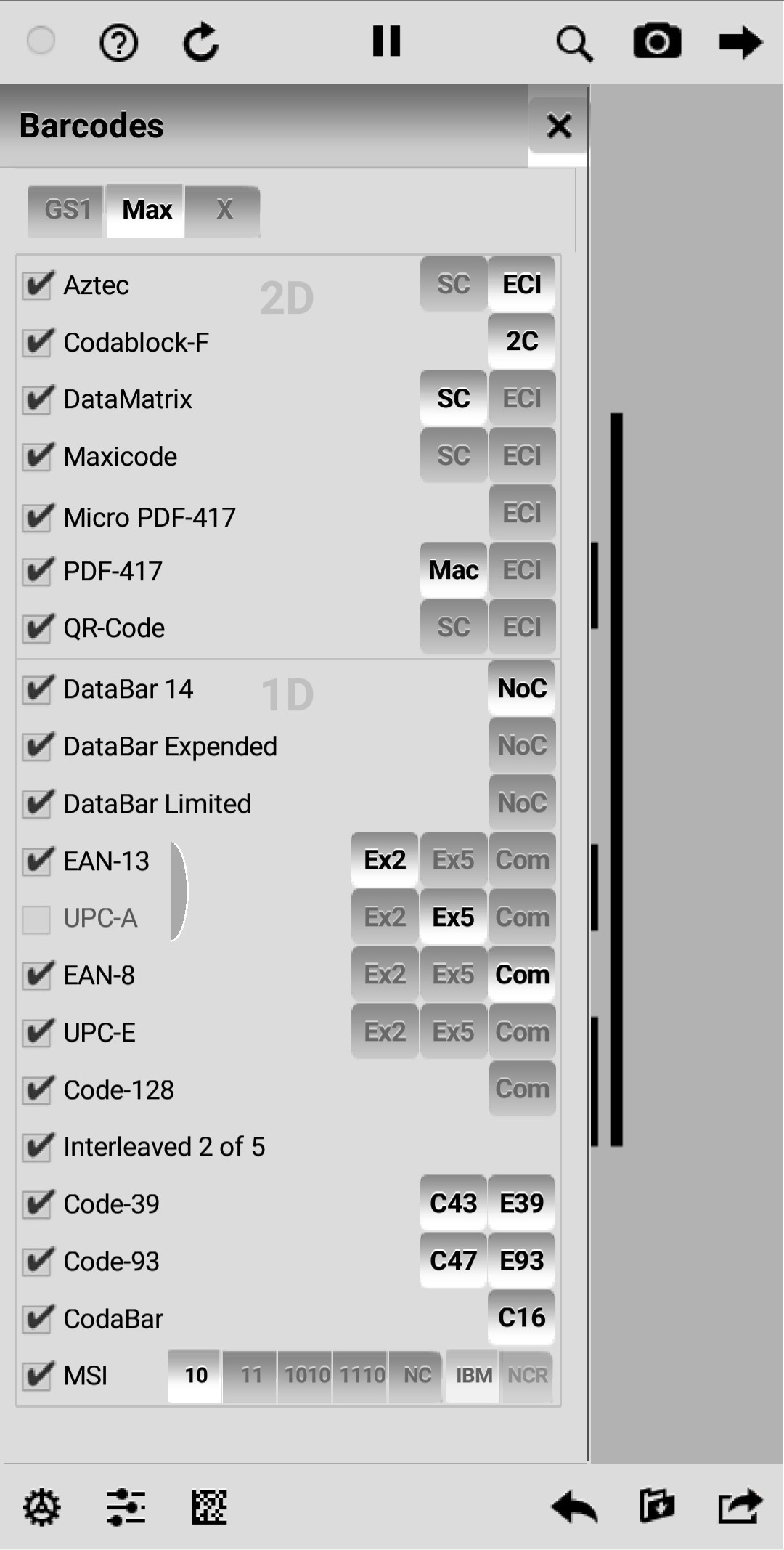

Barcode detection.

You can set any combination of checkboxes that does not contradict the barcode search conditions.

Abbreviations:

GS1 - barcodes used by GS1.
Max - set all barcodes.
X - clear all barcodes.

ECI - standard use of the ECI protocol (code page change).
2C - two check digits for CodaBlock-F.
SC - compound barcode.
Mac - Macro usage in PDF-417 barcode.
NoC - do not look for the composite component of the code.
Ex2 - be sure to look for the additional code Expented -2.
Ex5 - be sure to look for the additional code Expented -5.
Com - be sure to look for the composite component.
C43 - set mandatory code 39 checksum verification.
E39 - complete data decryption.
C47 - set mandatory code 93 checksum verification.
E93 - full decryption of data.
C16 - set mandatory checksum verification of CodaBar.
10, 11, 1010, 1110 - MSI checksum options, NC - do not check checksum, IBM and NCR - checksum verification algorithms.

Additionally.

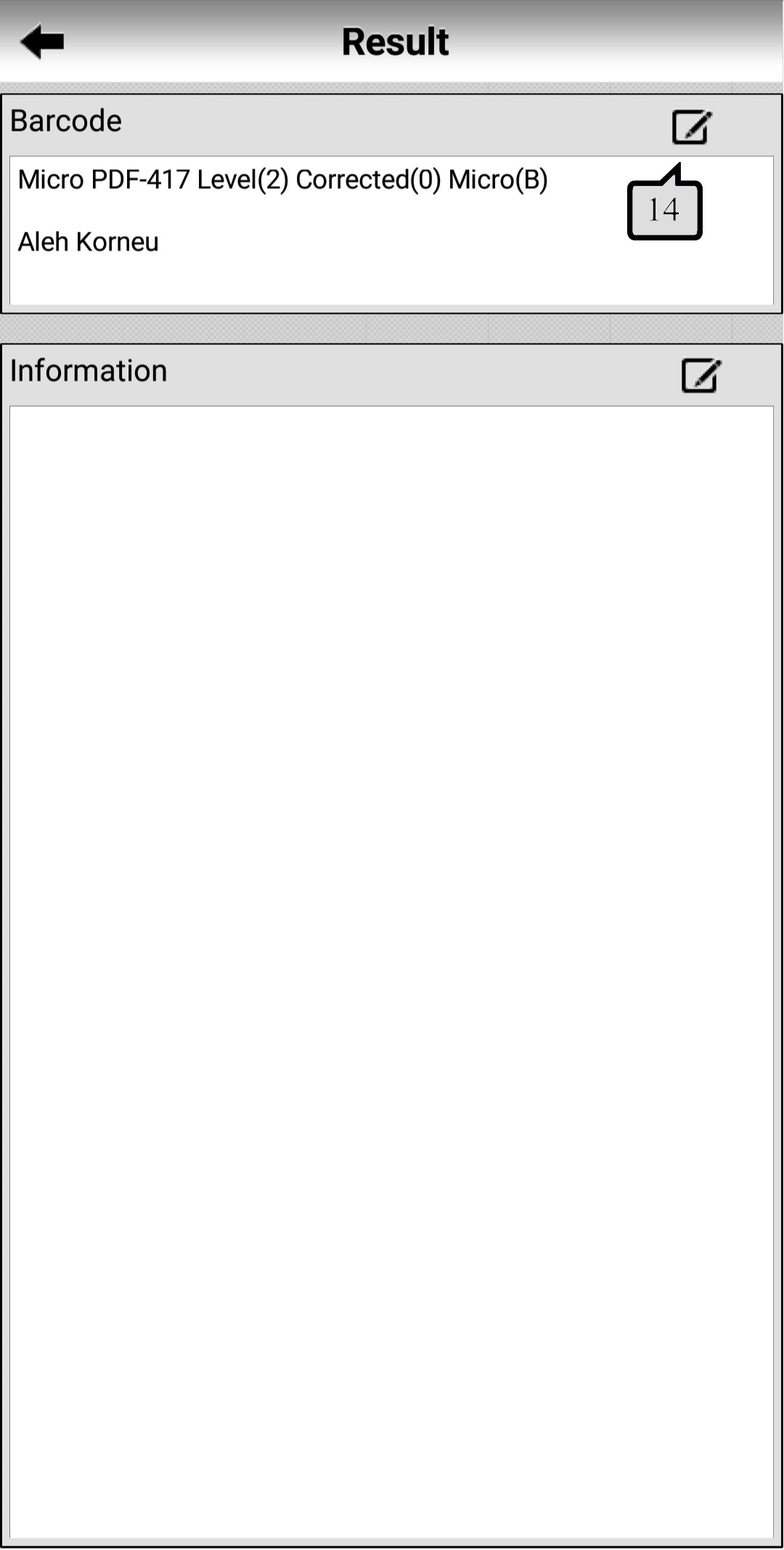

14. Button for copying data to the clipboard.
